Spec Sheet > Enviromental Monitoring EMS V10.0
September 10, 2024
Enviromental Monitoring EMS V10.0

Overview
The Environmental Monitoring System (EMS) is an all-in-one solution for monitoring underground mining conditions. Mounted within a Drive, Decline or Return Airway, the system will monitor atmospheric conditions and relay in real time what is happening.
Application
The Digital Terrain “EMS” monitors, Temperature, (wet and dry Bulb), Humidity, Wind Velocity, blast detection, particulate monitoring, C02, O2,
CO, NO2, SO2, NH3 and H2S, to record, display, and report the status of your underground mine. The system can be wired to existing fan starters,
creating a complete VOD solution. The built-in touch screen and remote web interface makes device setup and operation easy and accessible.
Specifications
Connectivity | Ethernet POE |
---|---|
1 Ethernet port, 1 Gb | |
Modbus Integration | |
Power requirements | PoE 802.3AT |
21 Watts | |
21 Watts | |
Display | 10.1” Touch Screen |
Indicators | RGB Status LEDs |
Video | Full HD Camera 5MP 1080p wide angle & IR LEDs |
Live Camera Feed | |
Motion recording and playback 100Gb storage | |
Interfacing | Web browser login Remote view and download |
Gas Sensors | Other Sensors |
O2, CO, CO2, NO2, S02, NH3 and H2S | |
Other Sensors | Temperature (dry & wet blub) |
Humidity, Pressure, Wind Velocity | |
Particulate detection, 1.0, 2.5, 5.0, 10.0 µ | |
Reporting | Local sensor data charting |
Email notifications on triggers | |
Control | 2 Relays: |
Automate external devices | |
or Active BLAST MODE (direct fan integration) | |
Mesh Networking | HIVE-MESH Gateway |
Station Master integration | |
Optional I/O Extras | 4 Digital Inputs (up to 24 vdc) |
4 Digital Outputs (TTL) | |
6 Analog Inputs (voltage or 4-20mA | |
4 Analog Outputs (voltage or 4-20mA) |

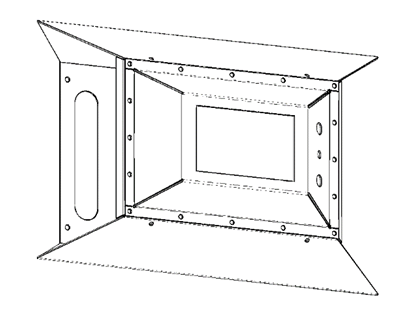

Drawings
